架构师提供的文本描述。UniuniCoffee在南京开了一家由东起建筑师设计的新店。Uniuni团队在WBC(世界巴里斯塔锦标赛)中享有盛誉，并致力于咖啡零售和咖啡文化宣传。
Text description provided by the architects. Uniuni Coffee has opened their new shop in Nanjing designed by dongqi Architects. Uniuni team earns high reputation in WBC(World Barista Championship) and has been dedicating to coffee retailing and coffee culture paching.
Text description provided by the architects. Uniuni Coffee has opened their new shop in Nanjing designed by dongqi Architects. Uniuni team earns high reputation in WBC(World Barista Championship) and has been dedicating to coffee retailing and coffee culture paching.
在了解统一文化核心精神的基础上，东奇队形成了“舞台与后台”的理念。弯曲的酒吧柜台设置像舞台，旁边的咖啡师煮咖啡，而顾客观看的过程，从每个角落的空间，就像观众一样。因此，舞台与后台的界限是模糊的。不同的功能是混合和重组的。购买、品尝和制作的体验可以同时发生在空间的四个柜台中的任何一个。

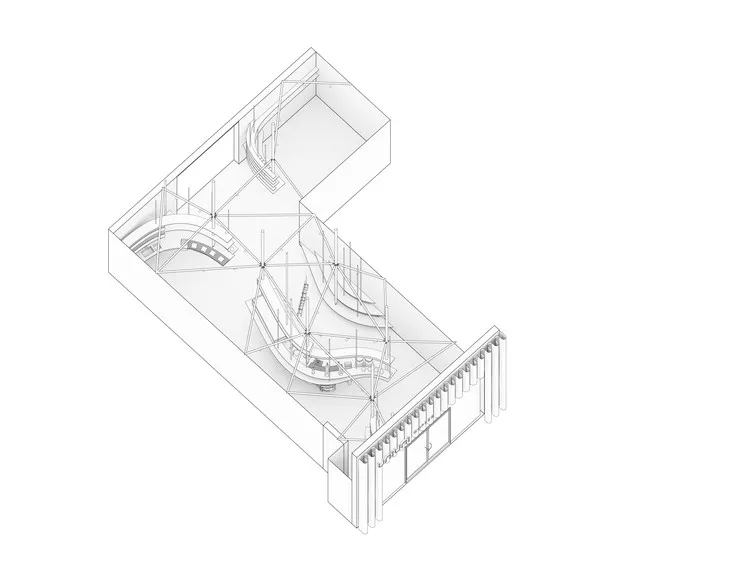

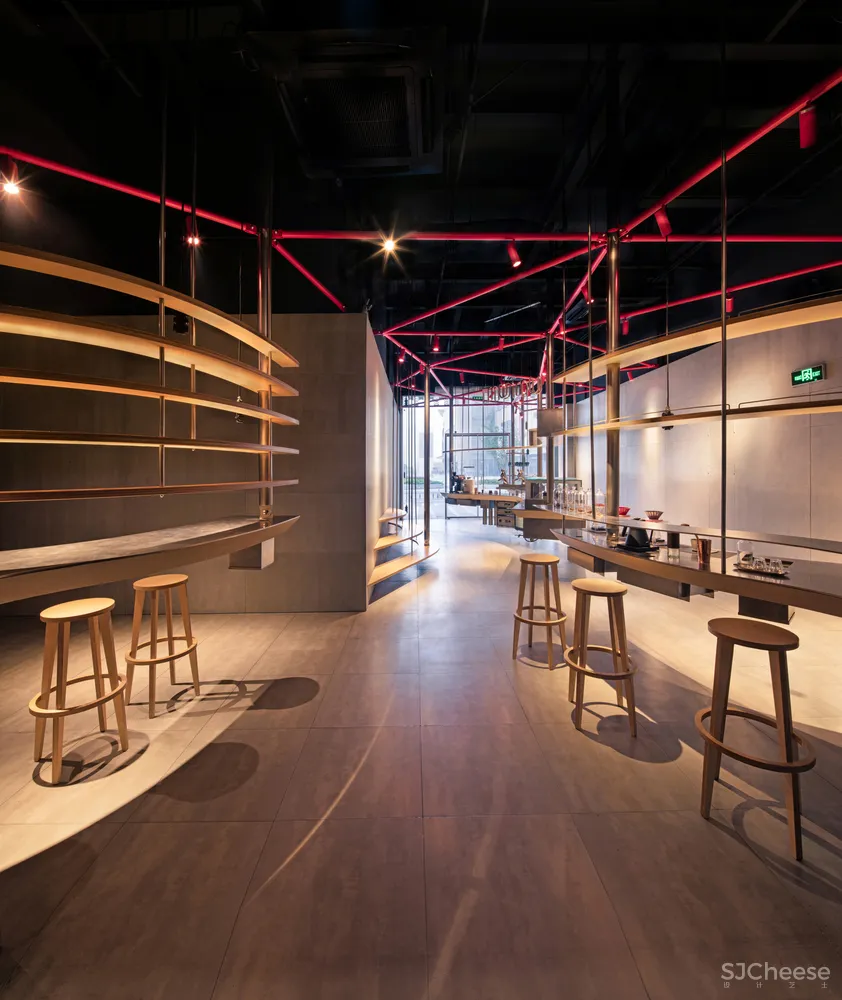

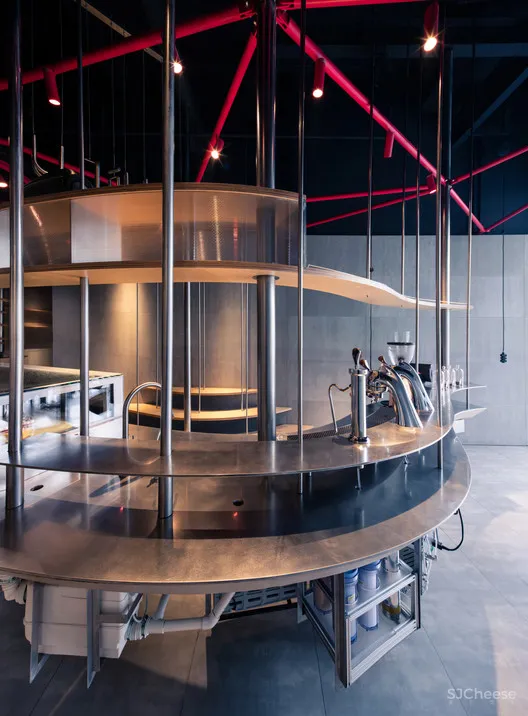

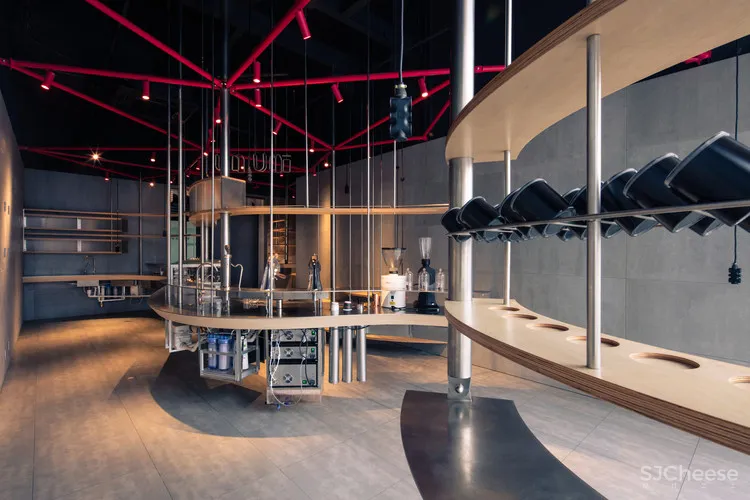

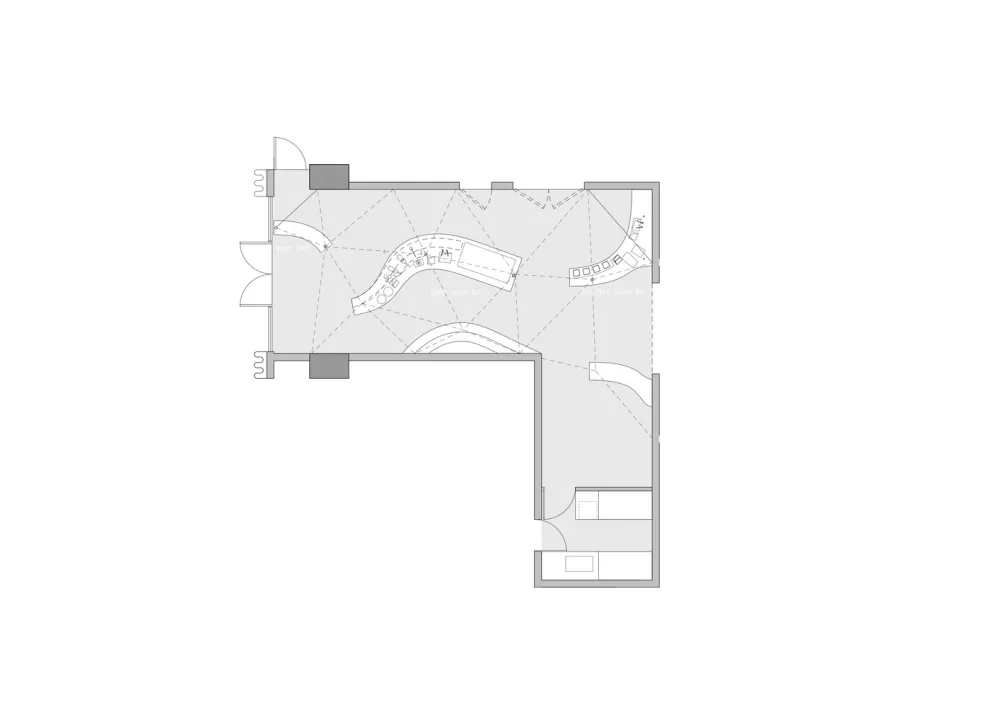

On the basis of understanding the key spirit of Uniuni culture, dongqi team develops the idea of “stage and back-stage”. The curved bar counters are set like the stages, by the side of which the baristas brew the coffee while the customers watch the process of making from every corner of the space just like the audience. Therefore, the boundary between stage and back-stage is blurred. Different functions are mixed and reorganized. The experience of buying, tasting and making can take place simultaneously in any of the four counters of the space.
On the basis of understanding the key spirit of Uniuni culture, dongqi team develops the idea of “stage and back-stage”. The curved bar counters are set like the stages, by the side of which the baristas brew the coffee while the customers watch the process of making from every corner of the space just like the audience. Therefore, the boundary between stage and back-stage is blurred. Different functions are mixed and reorganized. The experience of buying, tasting and making can take place simultaneously in any of the four counters of the space.
© Raitt Liu
刘瑞特
酒吧桌挂在天花板上，使用不锈钢管，通过铰链连接彼此。垂直钢管与地面上方3米高的水平钢管相连。水平钢管，喷红和安装点灯，有助于整合和稳定整个结构。架子上也挂着钢管。设备、机器和冰箱都是用L形钢筋挂在桌面上的.从天花板向下供水，通过钢管泵排出。一切都挂在天花板上，甚至连电源线也不例外。裸露的管道、电线和设备增强了“后台”概念的经验。

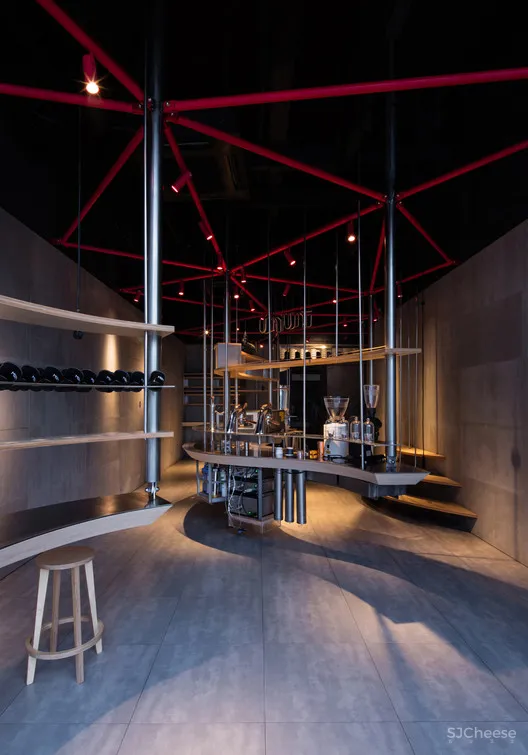

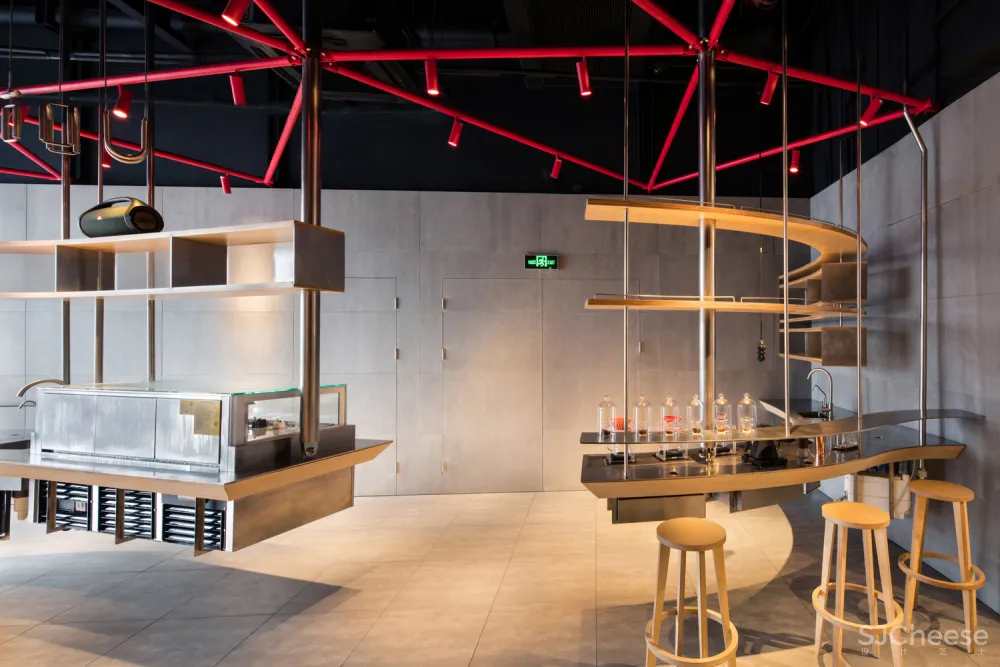

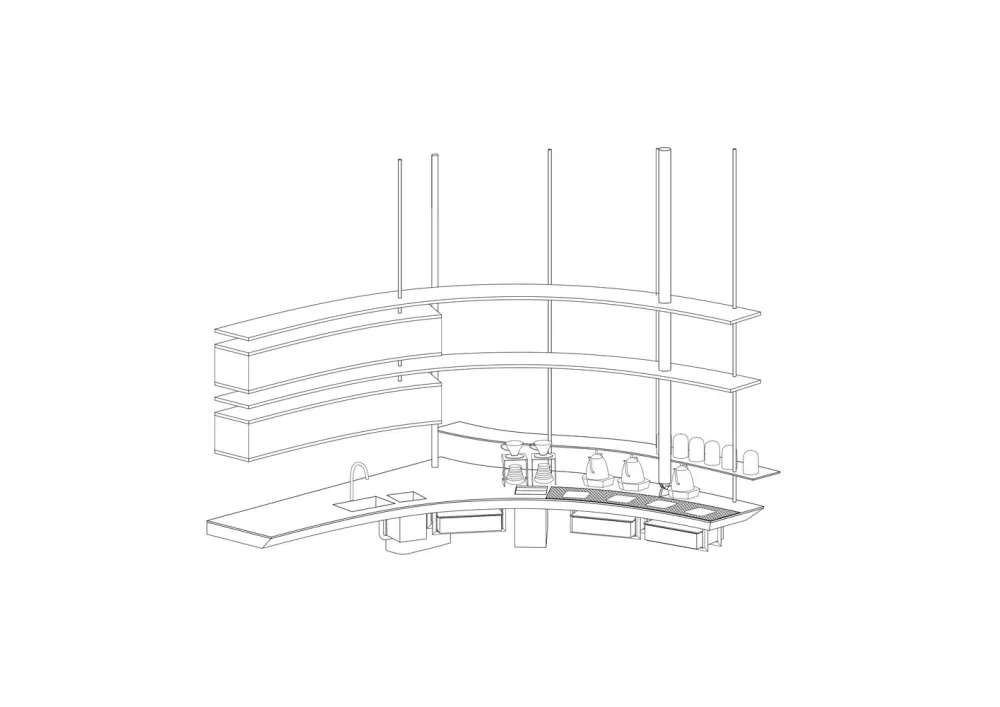

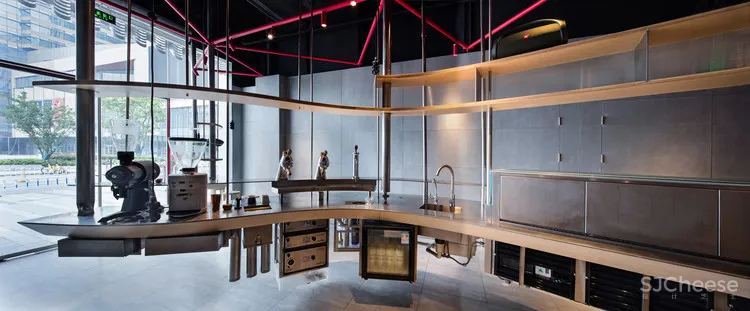

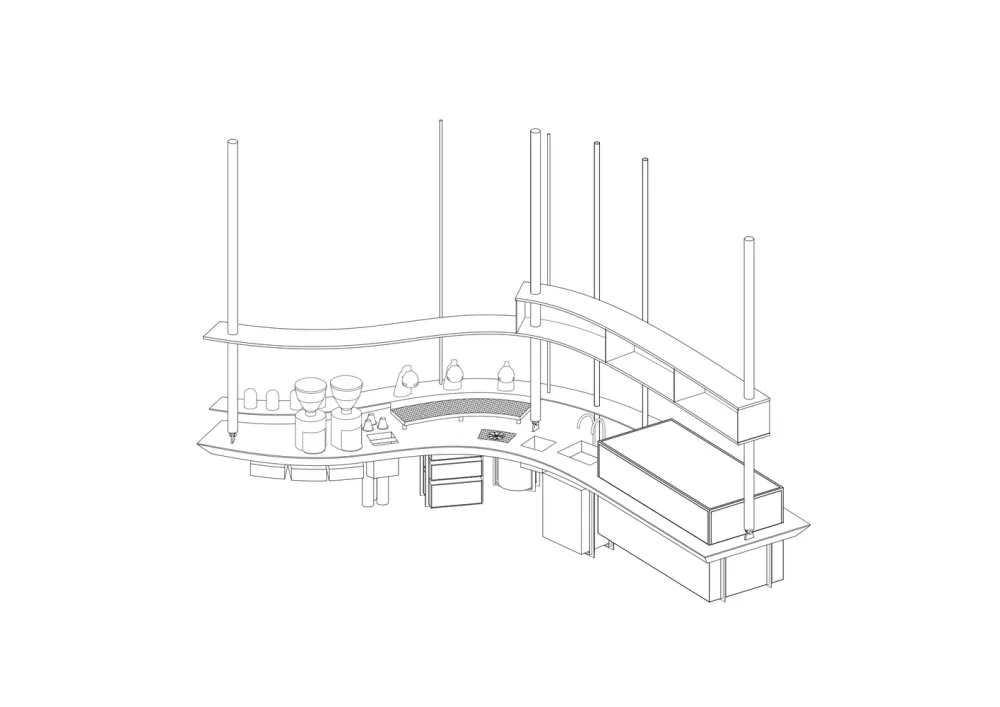

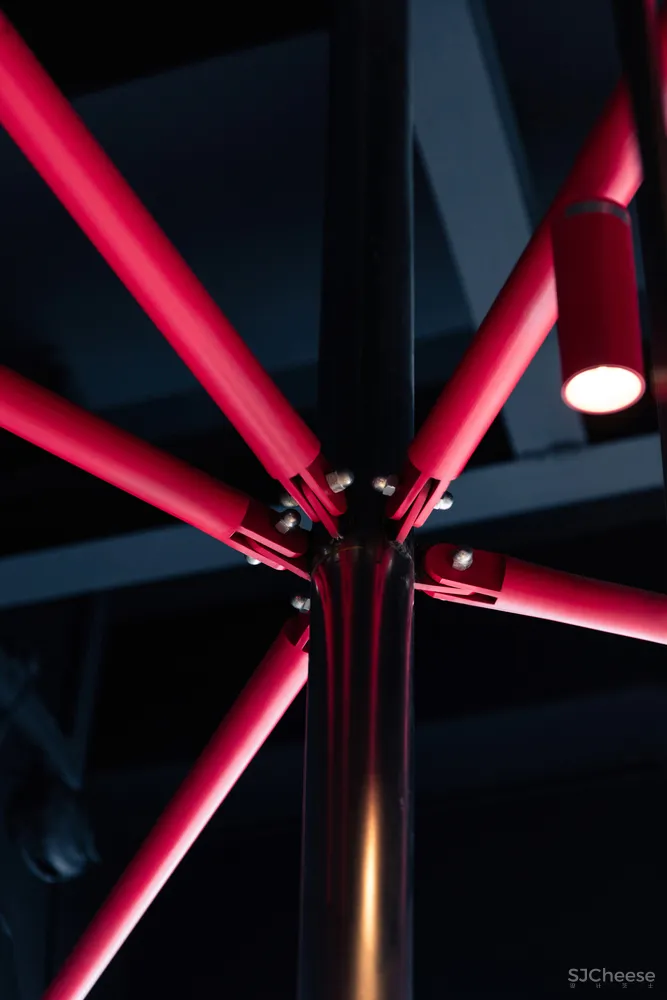

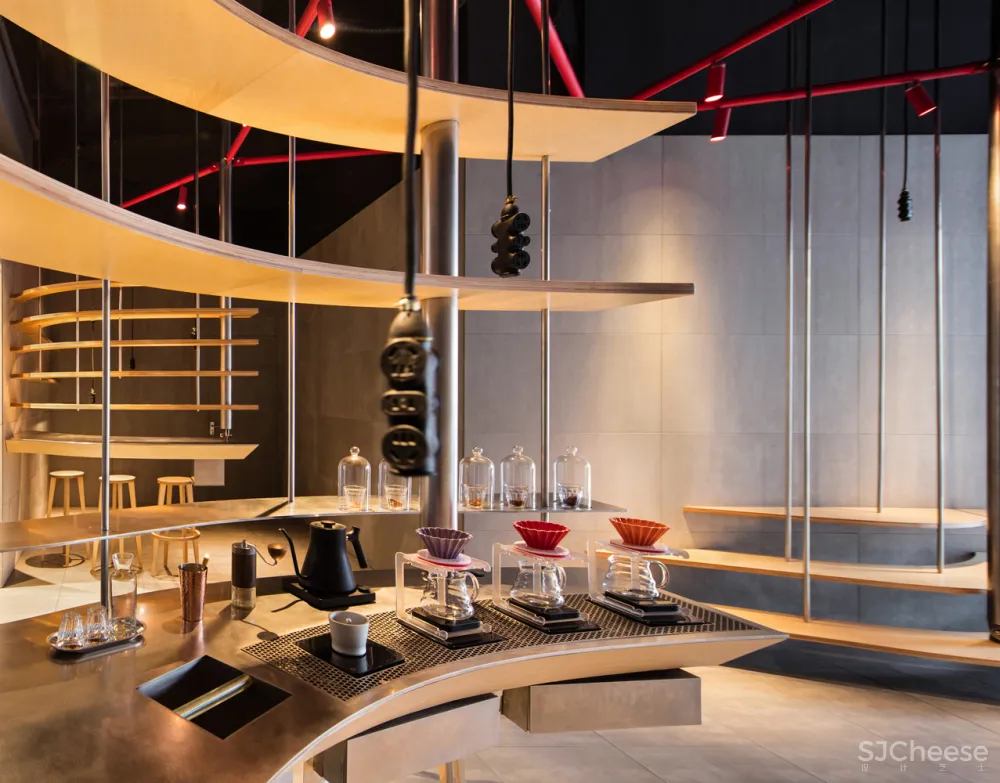

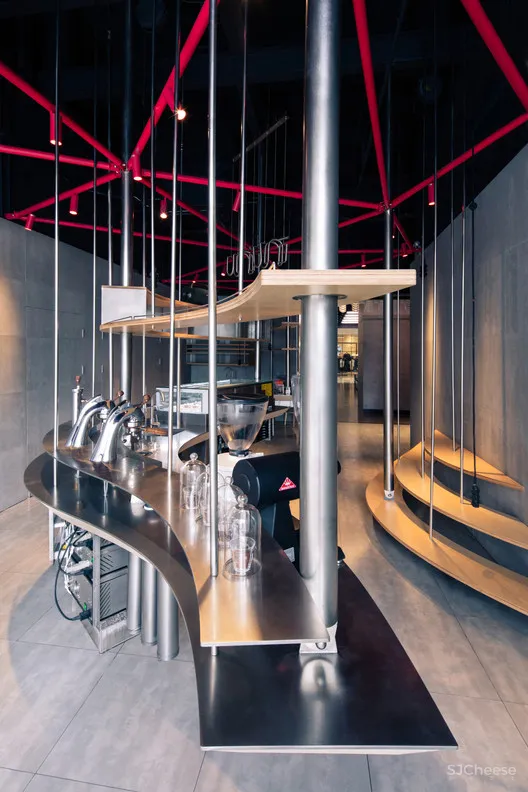

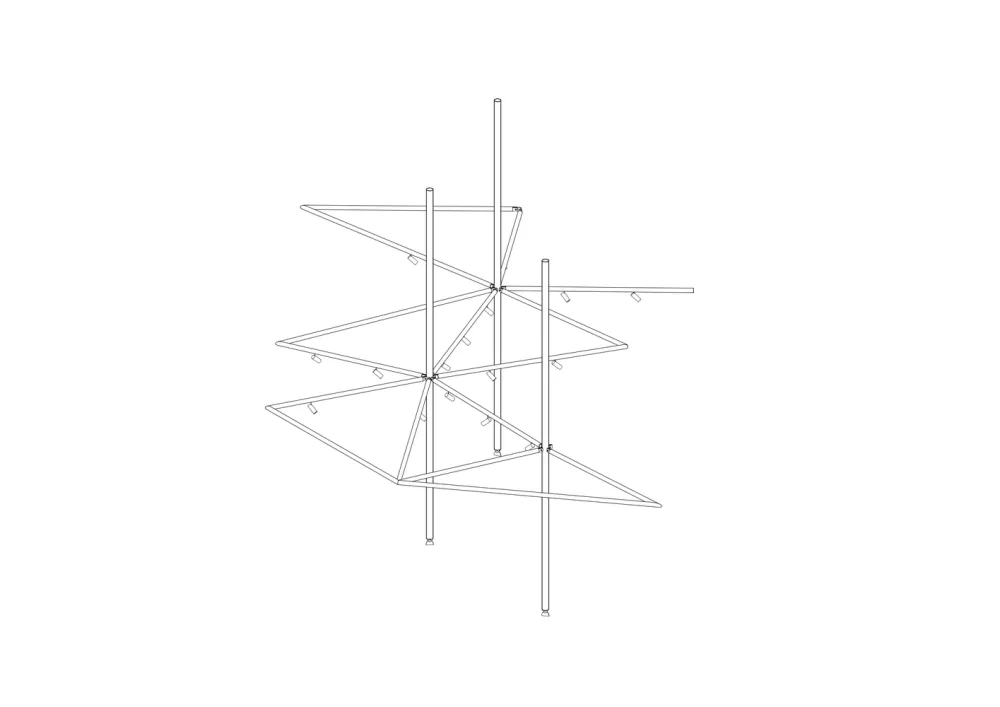

The bar tables are hung over to the ceiling by using stainless steel tubes, connecting each other by hinge joints. The vertical steel tubes are connected two by two by hinging with horizontal steel tubes at a 3-meter height above the ground. The horizontal steel tubes, sprayed red and fitted with spot lights, help to integrate and stabilize the whole structure. The shelves are also hung over by steel tubes. The facilities, machines and fridges are all hung to the table top by using L-shaped steel bars. Water supplies down from the ceiling and drains up by using pumps through steel tubes. Everything is hung to the ceiling even including power strips. The exposed pipes, wires and equipments enhance the experience of the “back-stage” concept.\
The bar tables are hung over to the ceiling by using stainless steel tubes, connecting each other by hinge joints. The vertical steel tubes are connected two by two by hinging with horizontal steel tubes at a 3-meter height above the ground. The horizontal steel tubes, sprayed red and fitted with spot lights, help to integrate and stabilize the whole structure. The shelves are also hung over by steel tubes. The facilities, machines and fridges are all hung to the table top by using L-shaped steel bars. Water supplies down from the ceiling and drains up by using pumps through steel tubes. Everything is hung to the ceiling even including power strips. The exposed pipes, wires and equipments enhance the experience of the “back-stage” concept.\
© Raitt Liu
刘瑞特
© Raitt Liu
刘瑞特
喷雾器，爆震盒和杯子分配器是定制的，焊接和抛光与不锈钢桌面作为一个整体。玻璃杯盖的设计是为了使自己稍微嵌入。酒吧桌的侧面是45°向内倾斜，以便被感知到的光和漂浮。采用半透明聚碳酸酯片作为储物架的正面材料，用开缝胶合板和不锈钢板封边。铰链连接钢件从下面焊接到工作台，以隐藏焊缝。

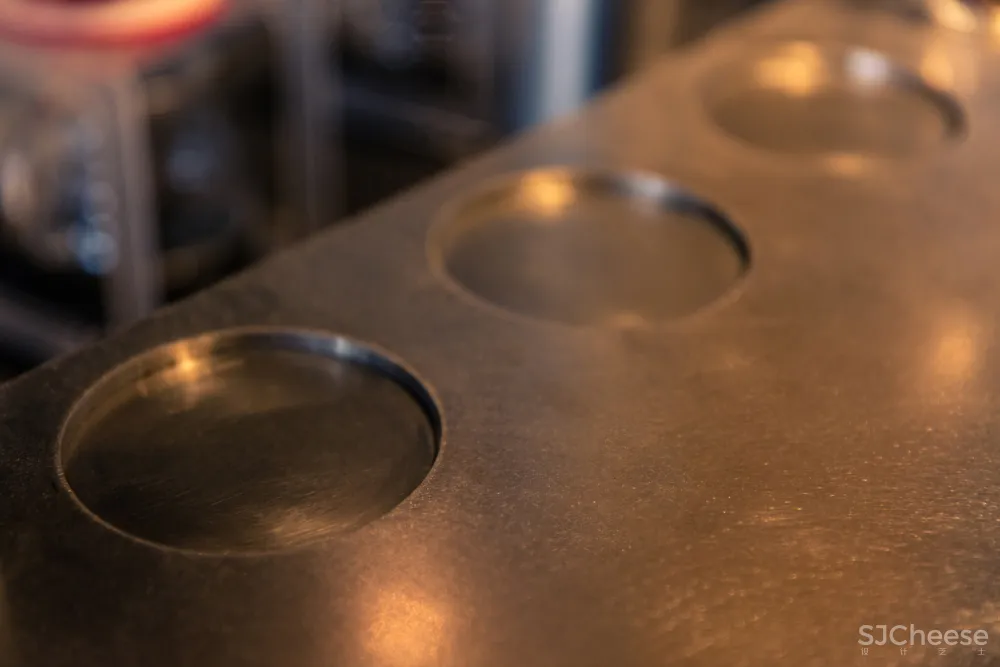

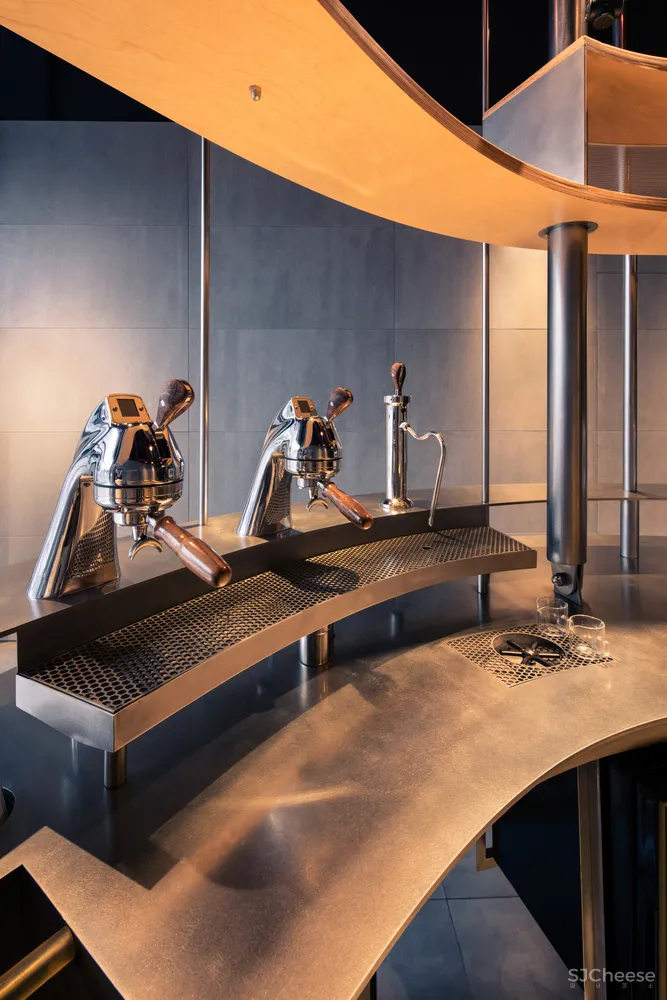

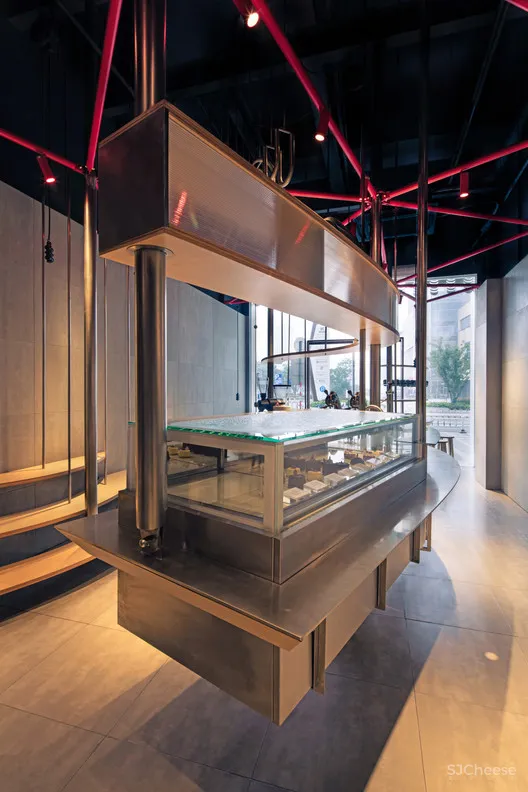

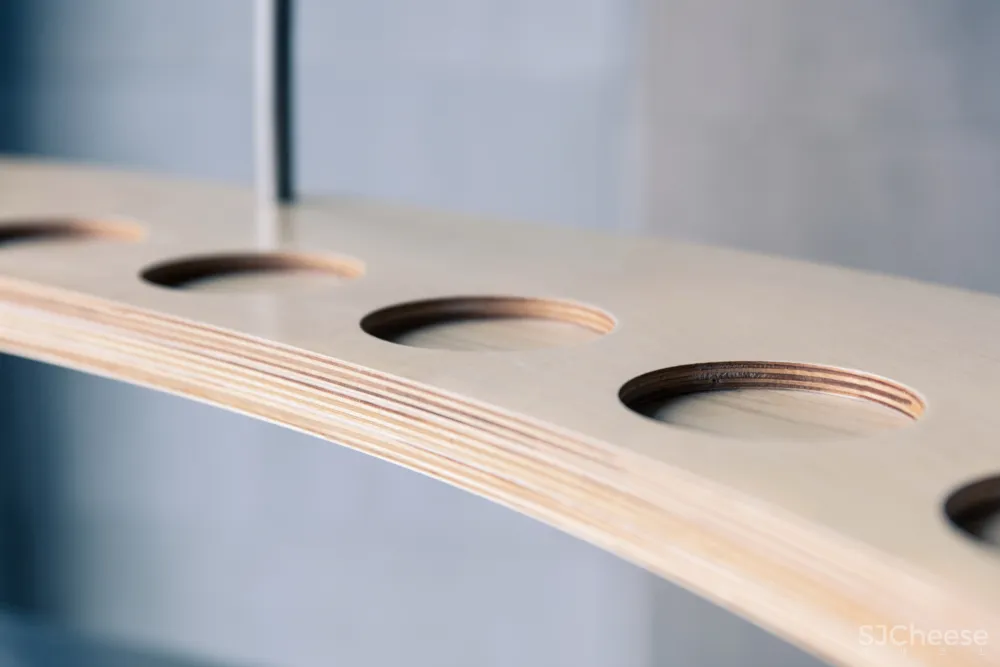

The spray rinsers, the knock boxes and the cup dispensers are customized, welded and polished to join with the stainless steel table top as a whole. The glass cup covers are designed to be slightly embedded in the selves. The sides of the bar tables are 45°tilted inwards in order to be perceived light and floated. Translucent polycarbonate sheets are used as the front side material of storage shelves, sealed the edges by the slotted plywood shelves and the stainless steel sheets. The hinge joint steel pieces are welded to the table from below in order to hide the weld seam.
The spray rinsers, the knock boxes and the cup dispensers are customized, welded and polished to join with the stainless steel table top as a whole. The glass cup covers are designed to be slightly embedded in the selves. The sides of the bar tables are 45°tilted inwards in order to be perceived light and floated. Translucent polycarbonate sheets are used as the front side material of storage shelves, sealed the edges by the slotted plywood shelves and the stainless steel sheets. The hinge joint steel pieces are welded to the table from below in order to hide the weld seam.
© Raitt Liu
刘瑞特
弯曲钢板和透明玻璃是FASTMade的主要元素。红色LED灯从钢板的梯度图案渗透，在白色钢板和顶部形成褪色阴影。狭窄的红钢框架勾勒出了大门的轮廓，在设计和品牌精神的同时，呼应了优雅、细腻、细腻的态度。

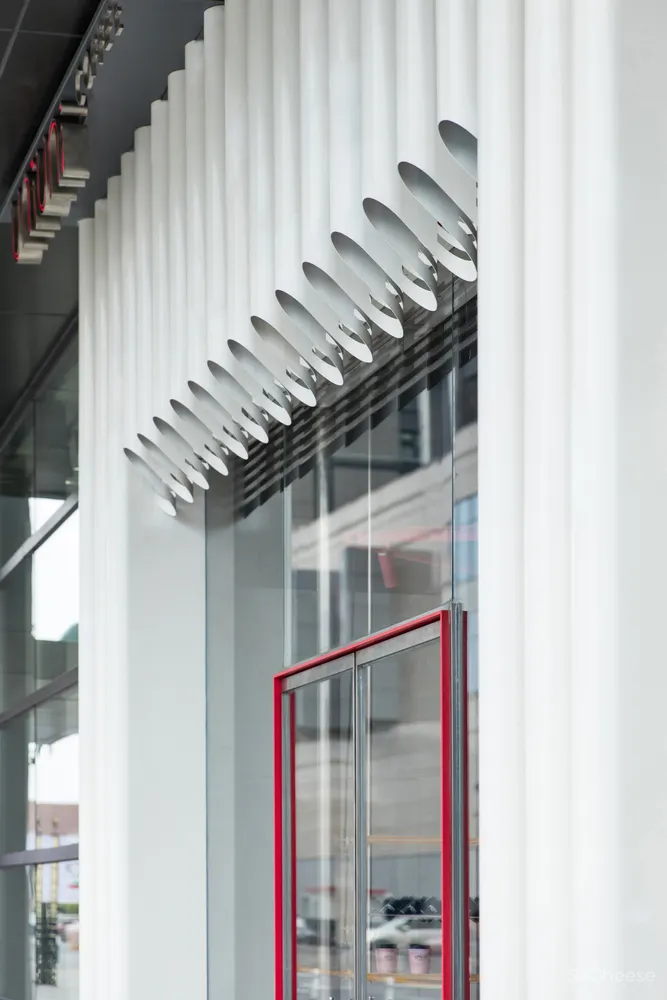

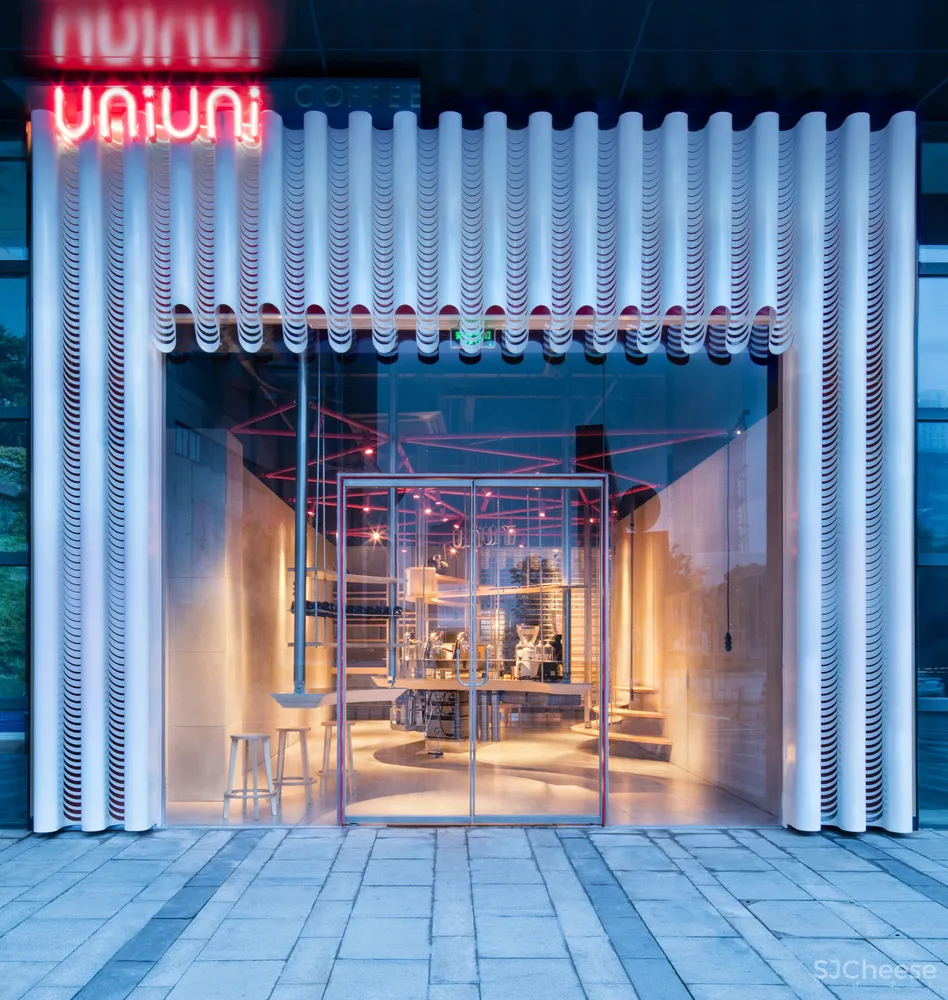

Curved steel sheets and clear glass are the main elements of the façade. Red LED lights permeate from gradient patterns of the steel sheets, casting fading away shadows on the white steel panels and the top. The narrow red steel frame outlines the main entrance door, echoing the elegant, exquisite while moderate attitude of design and the brand spirit.
Curved steel sheets and clear glass are the main elements of the façade. Red LED lights permeate from gradient patterns of the steel sheets, casting fading away shadows on the white steel panels and the top. The narrow red steel frame outlines the main entrance door, echoing the elegant, exquisite while moderate attitude of design and the brand spirit.
© Raitt Liu
刘瑞特
Interiors Designers dongqi Architects
Location Shuang Long Da Dao, Nanjing Shi, Jiangsu Sheng, China
Lead Architects Nan Jiang, Yiting Ma
Area 70.0 m2
Project Year 2018
Photographs Raitt Liu
Category Coffee Shop
